Diskover User Guide Companion
for Life Science Solutions

This guide is intended for the daily operations of Diskover's core features.

Introduction

The amount of data created by the life science sector is staggering, therefore the need to find, organize, manage, and act on this crucial resource is imperative. The core features of Diskover address these needs, and with the Life Science Edition, we are delivering extra power to manage specific challenges facing this industry.

Document Conventions

TOOL PURPOSE
text in blue font Click any text/link in blue font to navigate directly to that section.
🔆 Indicates a tip
✏️ Indicates a note
⚠️ Indicates a warning
🍿 Indicates that a video is available on the subject
Features Categorization IMPORTANT
  • Diskover features and plans were repackaged as of January 2025.
  • Please refer to Diskover's solutions page for more details.
  • You can also consult our detailed list of features.
  • Contact us to discuss your use cases, size your environment, and determine which plan is best suited for your needs.
  • Throughout this guide, you'll find labels indicating the plan(s) to which some feature belongs.
Core Features
Industry Add-Ons These labels will only appear when a feature is exclusive to a specific industry.



BAM harvest Plugin

The first feature on the menu for the Life Science Edition is the BAM Plugin, allowing for the curation of genome sequence file transformation.

The BAM harvest plugin is designed to provide BAM and SAM metadata attributes about a file without granting the Diskover user any read/write file system access for data integrity measures. The BAM plugin enables additional metadata for the SAM and BAM file formats to be harvested at time of index, and those extra fields are therefore searchable within Diskover.

The additional metadata being searchable means that it is also reportable for analysis and, therefore, actionable, allowing for potential upstream file management, manually or via automated scheduled tasks. If a file at the source doesn’t include any BAM attributes, it goes without saying that no details will be harvested and/or be available within Diskover.

The BAM plugin regroups all the BAM file attributes under the bam_info field.

Click here to watch a video demonstrating the plugin.

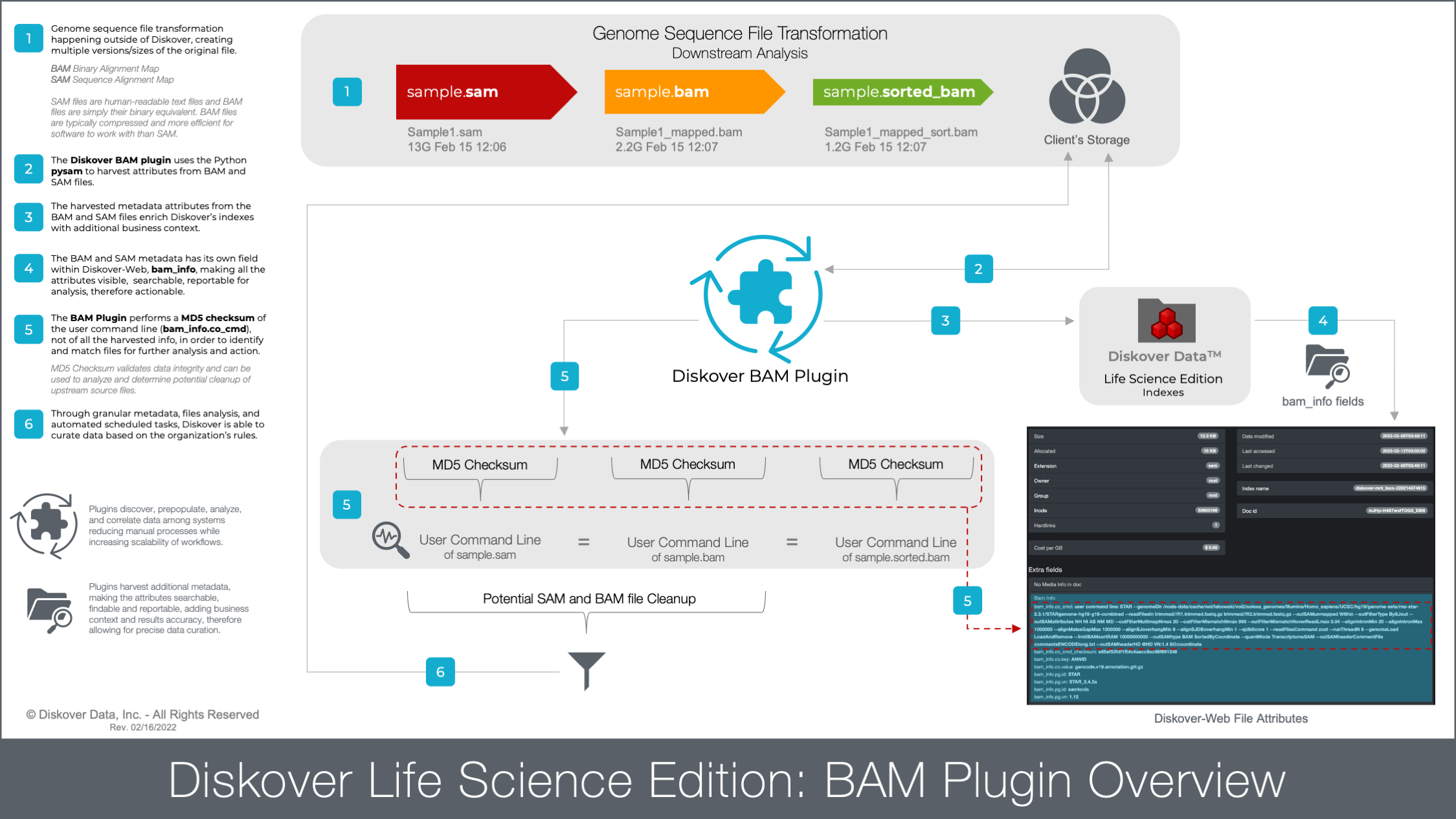

BAM Plugin Overview Diagram

Image: BAM Plugin Overview Diagram

Click here for a full screen view of the BAM Plugin Overview Diagram.

Hide/Unhide BAM Info Column in Search Results Pane

When using the file search page, you have access to a column with all the bam_info attributes. If you cannot see that column, it means that it is hidden. To unhide that column, go to ⛭ → Settings → Hide fields in search results → unclick the box in front of bam_info.

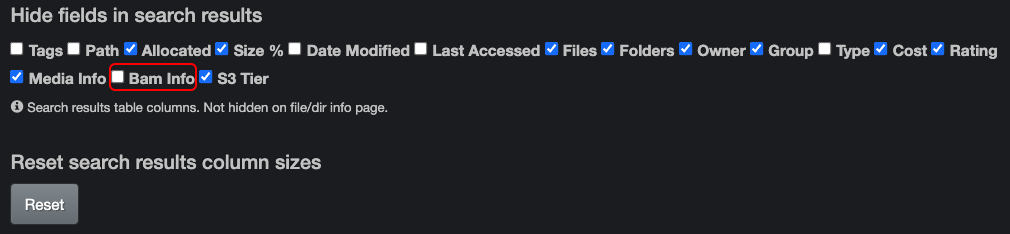

Image: Hide/Unhide Media Info Field

The bam_info column will then be available within the search results pane. If the column is visible but there are no attributes for a file, this means that there was no media metadata associated with the source file to begin with.

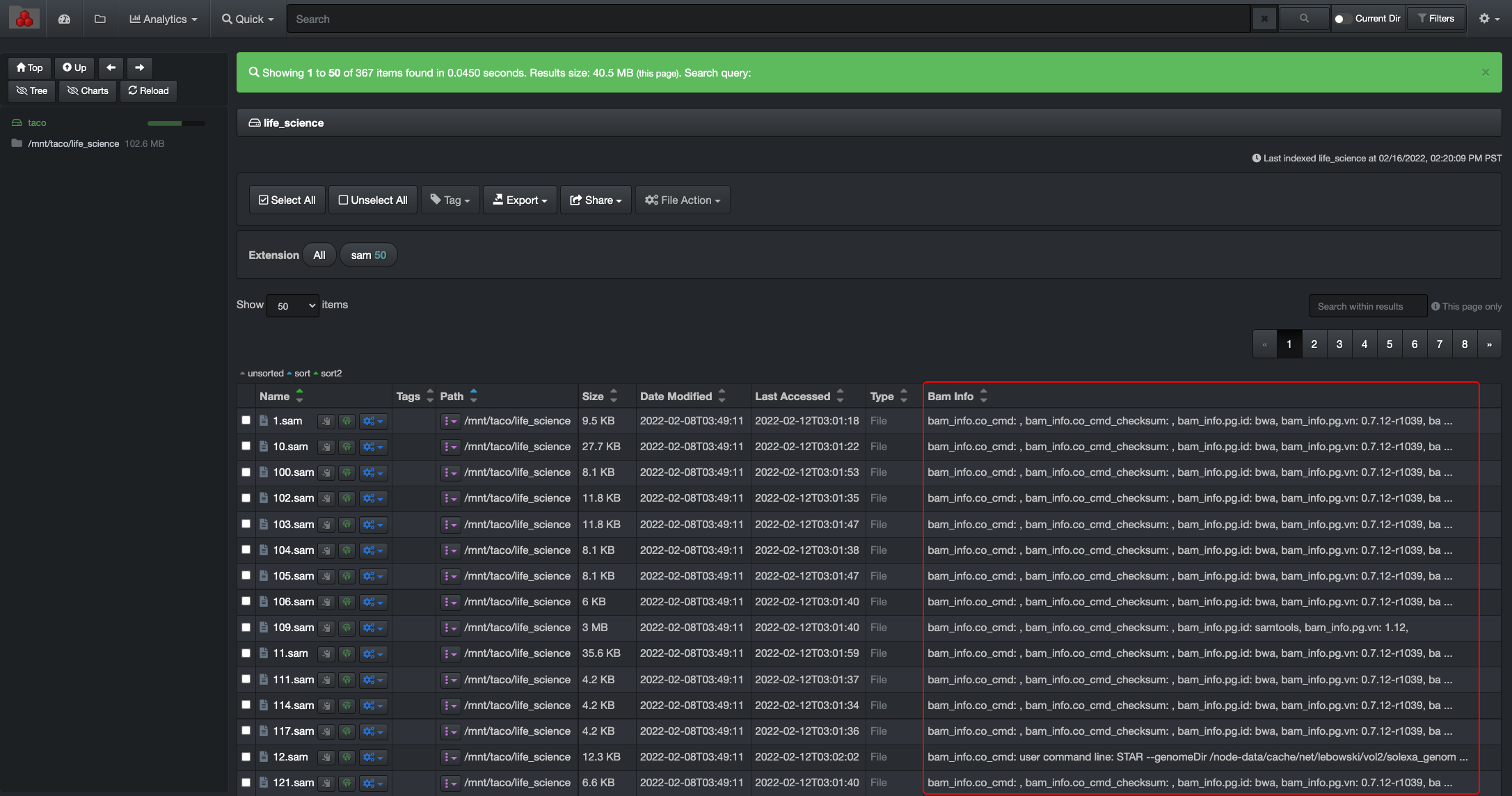

Image: Media Info Column in Search Results

View Detailed BAM Attributes

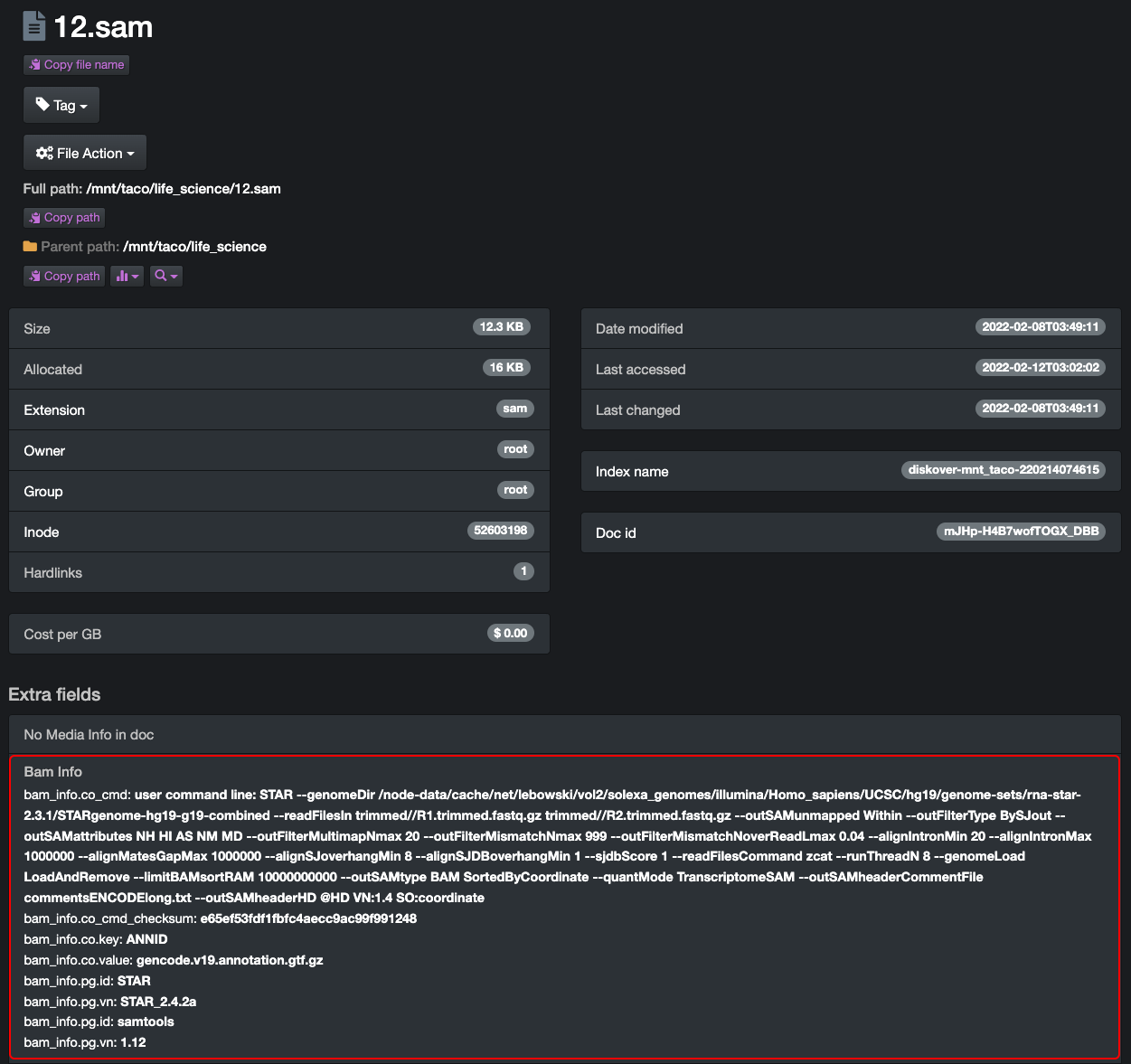

Below is an example of the location where you can see detailed media attributes. You can access this page by clicking on a file in the search results pane or wherever you see the magnifying glass icon:

Image: Harvested Media Attributes

Search on BAM Attributes

In addition to the manual file searches and syntax explained in the Diskover User Guide, the BAM plugin allows end-users to search on specific BAM attributes.

Important Notes for Searching on BAM Attributes

  • The BAM attributes can be used in a manual search query. The structure is as follows and the < > are not meant to be typed, they are only for visual and isolating where to input the variables:
bam_info.<key>:<value>

  • As these fields can be complex to search, it is highly recommended to use the * wild card for ease of searching and to expand your results.

  • The fields described below are meant to be copied/typed in the search bar of the Diskover user interface.

  • At the moment, searching on the BAM attributes is case sensitive, i.e. if the metadata harvested uses some or all capital letters, you will need to search with the same capital letters, for example:

  • The attributes field portion of the query needs to be typed lowercase bam_info.\<key>:
  • As for the \ if the metadata shows bam_info.pg.id: STAR
    • If you launch a query with bam_info.pg.id:star, that file would not be found.
    • If you launch a query with bam_info.pg.id:Star, that file would not be found.
    • If you launch a query with bam_info.pg.id:STAR, that file would be found.

The searchable bam_info fields are:

SYNTAX 🔎 QUERY EXAMPLES
bam_info.co_cmd: bam_info.co_cmd:*GenomeDir*
bam_info.co_cmd_checksum: bam_info.co_cmd_checksum:e65ef53fdf1fbfc4aecc9ac99f991248

✏️ Could be used to find other files with the same checksum value, although Diskover has automated tools to detect and find duplicate files.
bam_info.co.key: bam_info.co.key:*ANNID*
bam_info.co.value: bam_info.co.value:*gencode.v19*
bam_info.pg.id: bam_info.pg.id:*STAR* or bam_info.pg.id:*samtools*
bam_info.pg.vn: bam_info.pg.vn:*2.4*

Grant Plugin

🚧  We're hard at work preparing these instructions.
